(1) Opening time

December 2022

(2) Project Overview

It has a total length of 16 kilometers and a total of 16 stations are set up, including 12 underground stations, 3 elevated stations and 1 ground station. The train uses an 8-car formation. It is an important transportation artery in Hong Kong.

(3) Technical solutions and their advantages and characteristics

Hong Kong's Tsuen Wan Line: TIDS was first implemented and applied, achieving a major breakthrough in the operation of artificial intelligence applications on the line, which has great demonstration effects.

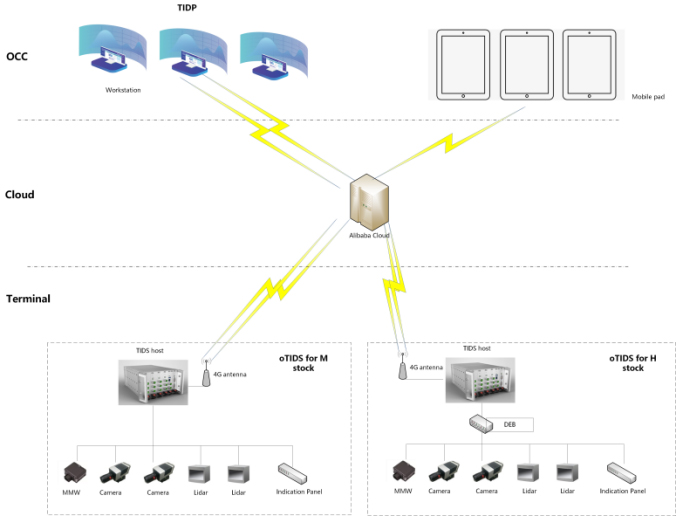

Each train is equipped with two sets of on-board equipment. For each set of on-board equipment on the M car, it includes a main unit (with a 4G public network communication device built-in), 2 lidars, 2 Eye擎 cameras (Note: If "眼擎" has a specific official English name, please replace it accordingly), millimeter-wave radars, and an indicator light box. Among them, an additional aggregation box device is added to the H car.
